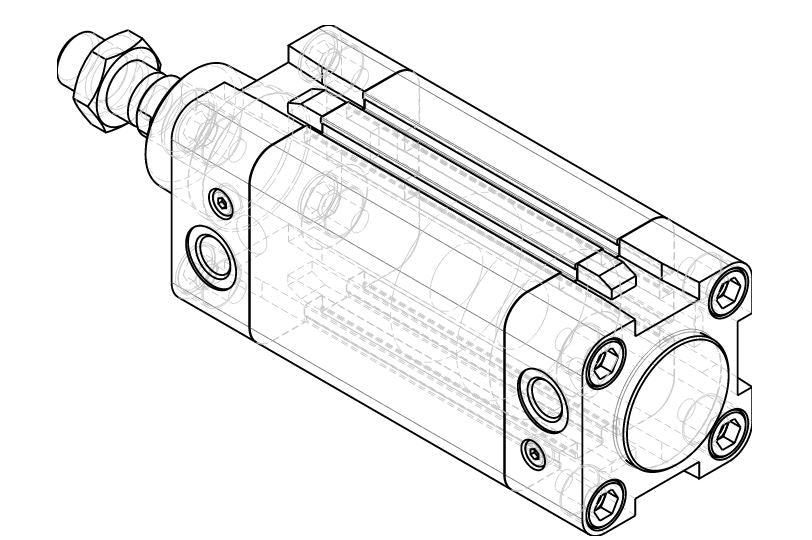

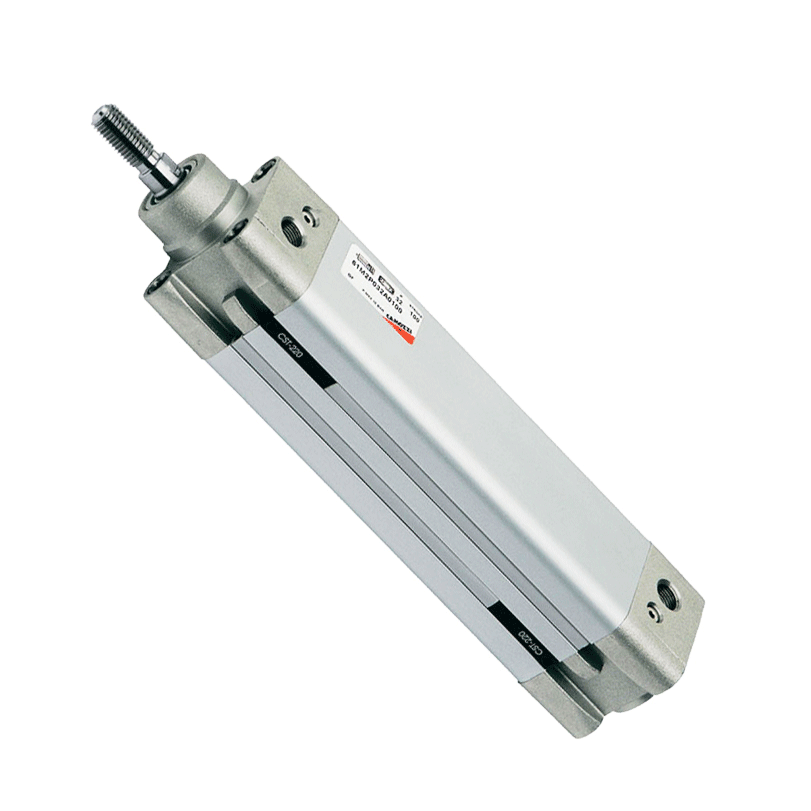

Pneumatic cylinder 32mm stroke 50mm

Pneumatic cylinder 32mm stroke 50mm

made of aluminium.

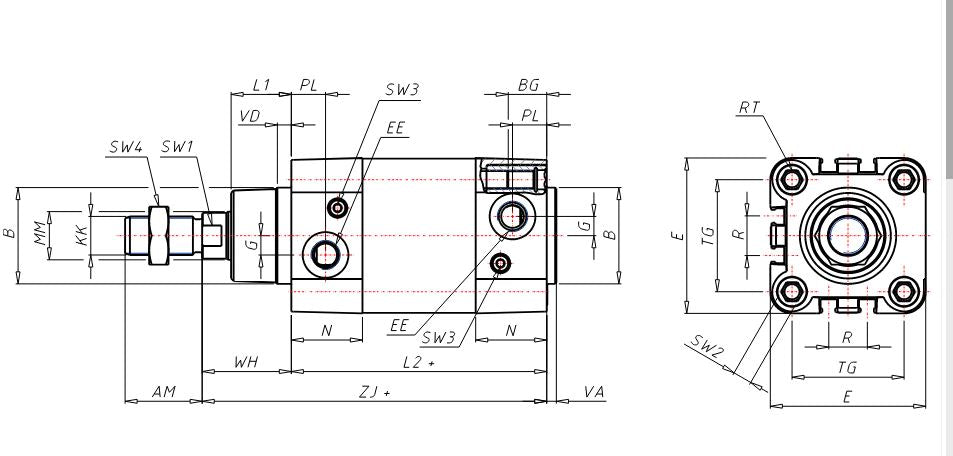

Technical dimensions:

Diameter 32mm
MM 12mm
KK M10x1x25
d11 30mm
PL 14mm
L1 18mm
AM 22mm
VA 4mm
EE G1/8"
WH 26mm
L2 94mm
ZJ 120mm
E 46mm


OE number = 103638

Regular price €59,06 EUR
Regular price Sale price €59,06 EUR
Sale Sold out

Article no.

SKU:W1005671
