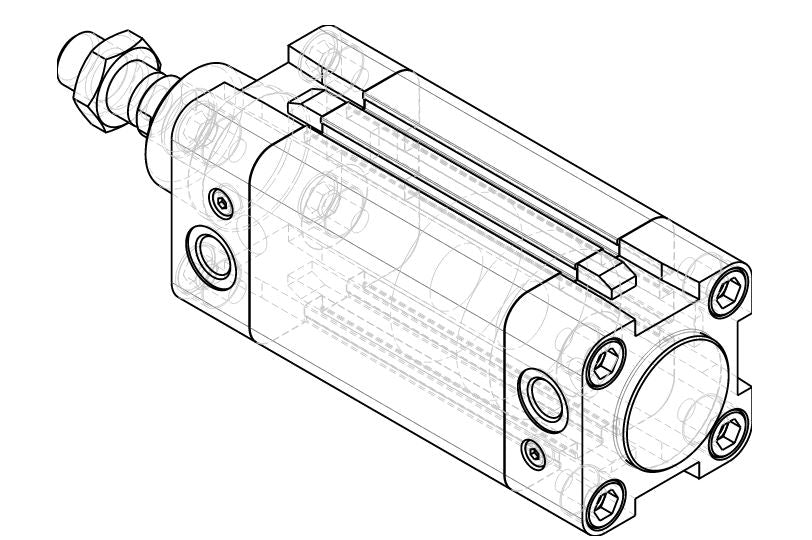

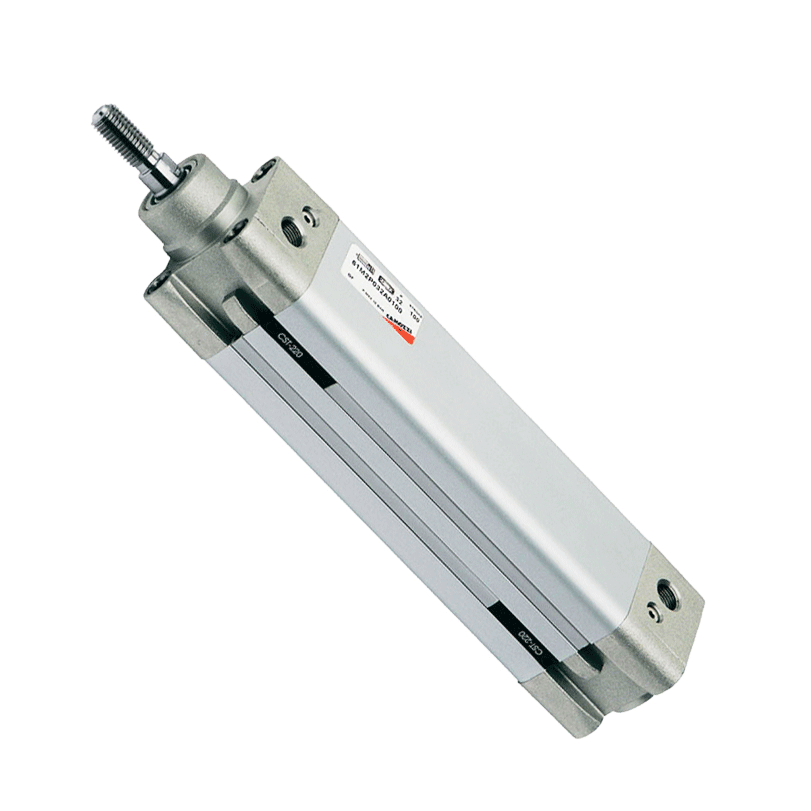

Pneumatic cylinder 80mm stroke 160mm

Pneumatic cylinder 80mm stroke 160mm

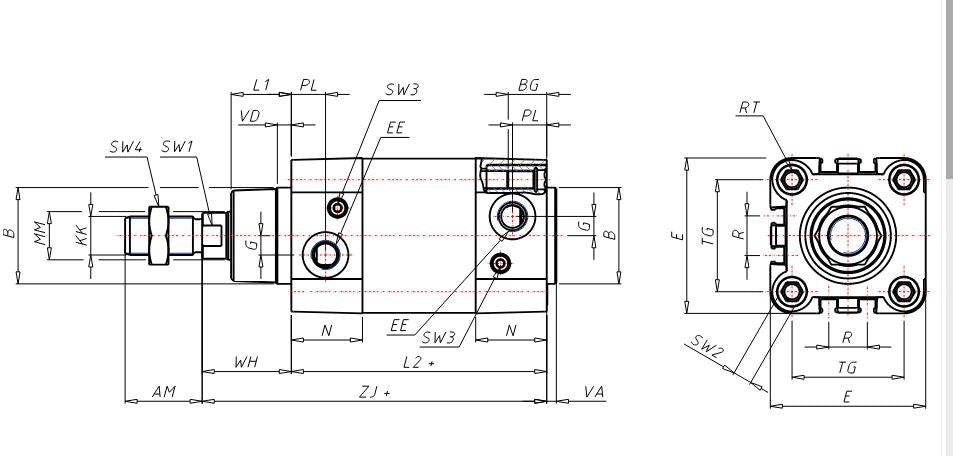

Technical dimensions:
Diameter 80mm
MM 25mm
KK M20x1x5
d11 45mm
PL 21mm
L1 30mm
AM 40mm
VA 4mm
EE G3/8"
WH 46mm
L2 128mm
ZJ 174mm
E 93mm

Price

€208,28 EUR
€208,28 EUR
Sale Sold out
Shipping calculated at checkout.

Article no.

W1006844

OE number = 108869

View full details
